Predicting the music genre of spotify tracks using deep learning

Author

Daniel Loos

Published

October 10, 2022

Abstract

Music genres are often composed of particular pitch patterns that can be used for prediction. The Spotify API provides features for entire tracks, e.g. its loudness or acousticness scores, as well as the sequence of the individual pitches (notes). Totaling 3600 tracks across techno, rock, jazz and classicsal generes were analyzed and used for both classical Machine Learning and Deep Learning modeling methods. Validation accuracy of both approaches were similar suggesting that more sophisticated network architectures are needed to increase the model performance.

Tech stack

keras deep learning framework
Tensorflow deep learning framework
tidymodels machine learning framework
tidyverse data wrangling
R targets pipeline system
spotifyr REST API calls
quarto notebook documentation

Keywords:

Spatial data analysis
deep learning
CNN
LSTM
REST APIs

This project on GitHub

ETL pipeline

Spotify audio analysis API was queried to get summary features, e.g. danceability and accousticness, as well as the individual pitch sequences of 3600 music tracks. An R targets pipeline DAG was created to retrieve and transform the data allowing parallelization and caching:

source("_targets.R")
tar_load(c("terms", "track_audio_features", "selected_audio_features", "audio_analyses", "track_train_test_split", "track_searches", "track_pitches", "valid_tracks", "track_audio_analyses"))

tar_visnetwork()

── Attaching packages ─────────────────────────────────────── tidyverse 1.3.2 ──
✔ ggplot2 3.3.6      ✔ purrr   0.3.4
✔ tibble  3.1.8      ✔ dplyr   1.0.10
✔ tidyr   1.2.1      ✔ stringr 1.4.1
✔ readr   2.1.2      ✔ forcats 0.5.1
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()

Attaching package: ‘spotifyr’

The following object is masked from ‘package:broom’:

    tidy

Data overview

Spotify was queried by the following terms. Up to 50 tracks per term were retrieved.

terms

[1] "techno"    "rock"      "jazz"      "classical"

Total number of tracks:

nrow(track_searches)

[1] 3600

Tracks per term:

track_searches |> count(term)

# A tibble: 4 × 2
  term          n
  <chr>     <int>
1 classical   900
2 jazz        900
3 rock        900
4 techno      900

Features per track:

tracks <-
  track_audio_features |>
  left_join(track_searches, by = "id") |>
  filter(id %in% valid_tracks) |>
  mutate(term = factor(term))

colnames(tracks)

 [1] "danceability"                 "energy"
 [3] "key"                          "loudness"
 [5] "mode"                         "speechiness"
 [7] "acousticness"                 "instrumentalness"
 [9] "liveness"                     "valence"
[11] "tempo"                        "type.x"
[13] "id"                           "uri.x"
[15] "track_href"                   "analysis_url"
[17] "duration_ms.x"                "time_signature"
[19] "term"                         "offset"
[21] "artists"                      "available_markets"
[23] "disc_number"                  "duration_ms.y"
[25] "explicit"                     "href"
[27] "is_local"                     "name"
[29] "popularity"                   "preview_url"
[31] "track_number"                 "type.y"
[33] "uri.y"                        "album.album_type"
[35] "album.artists"                "album.available_markets"
[37] "album.href"                   "album.id"
[39] "album.images"                 "album.name"
[41] "album.release_date"           "album.release_date_precision"
[43] "album.total_tracks"           "album.type"
[45] "album.uri"                    "album.external_urls.spotify"
[47] "external_ids.isrc"            "external_urls.spotify"

Number of tracks after sanity checks:

nrow(tracks)

[1] 3477

Summary features for prediction

features <- c("danceability", "acousticness")

tar_load(track_train_test_split)
tracks_train <- tracks |> inner_join(track_train_test_split) |> filter(is_train)

Joining, by = "id"

tracks_train |>
  select(term, features) |>
  mutate(across(features, scale)) |>
  pivot_longer(features) |>
  ggplot(aes(term, value)) +
    geom_quasirandom() +
    geom_boxplot(outlier.size = NULL, width = 0.5) +
    facet_wrap(~ name, scales = "free") +
    coord_flip()

Note: Using an external vector in selections is ambiguous.
ℹ Use `all_of(features)` instead of `features` to silence this message.
ℹ See <https://tidyselect.r-lib.org/reference/faq-external-vector.html>.
This message is displayed once per session.

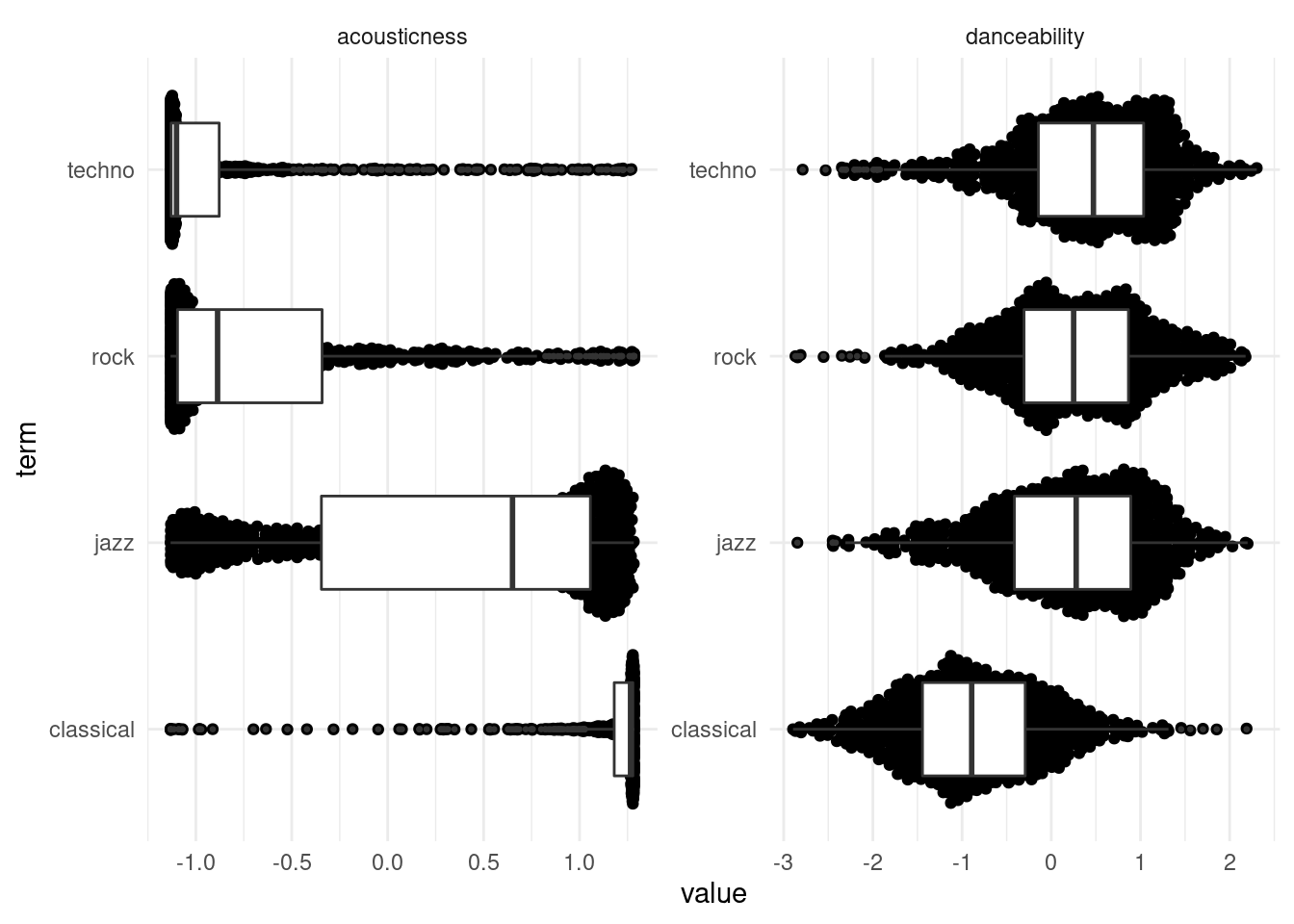

Techno songs are high in danceability and low in acousticness

(Linear Euclidean) ordination biplot to show at all numeric features at once:

pca <-
  track_audio_features |>
  semi_join(tracks_train) |>
  column_to_rownames("id") |>
  select(selected_audio_features) |>
  mutate(across(everything(), scale)) |>
  filter(if_any(everything(), ~ ! is.na(.x))) |>
  prcomp()

Joining, by = c("danceability", "energy", "key", "loudness", "mode",
"speechiness", "acousticness", "instrumentalness", "liveness", "valence",
"tempo", "id", "track_href", "analysis_url", "time_signature")
Note: Using an external vector in selections is ambiguous. ℹ Use
`all_of(selected_audio_features)` instead of `selected_audio_features` to
silence this message. ℹ See
<https://tidyselect.r-lib.org/reference/faq-external-vector.html>. This message
is displayed once per session.

tracks_pca <-
    pca$x |>
    as_tibble(rownames = "id") |>
    left_join(track_audio_features, by = "id") |>
    left_join(track_searches, by = "id")

# get medoids
track_clusters <-
  tracks_pca |>
  group_by(term) |>
  summarise(across(c(PC1, PC2), median))

tibble() |>
  ggplot(aes(x = PC1, y = PC2, color = group)) +
  geom_text(
     data = track_clusters |> mutate(group = "term"),
     mapping = aes(label = term)
  ) +
  geom_text(
     data = pca$rotation |> as_tibble(rownames = "feature") |> mutate(group = "feature"),
     mapping = aes(label = feature)
  )

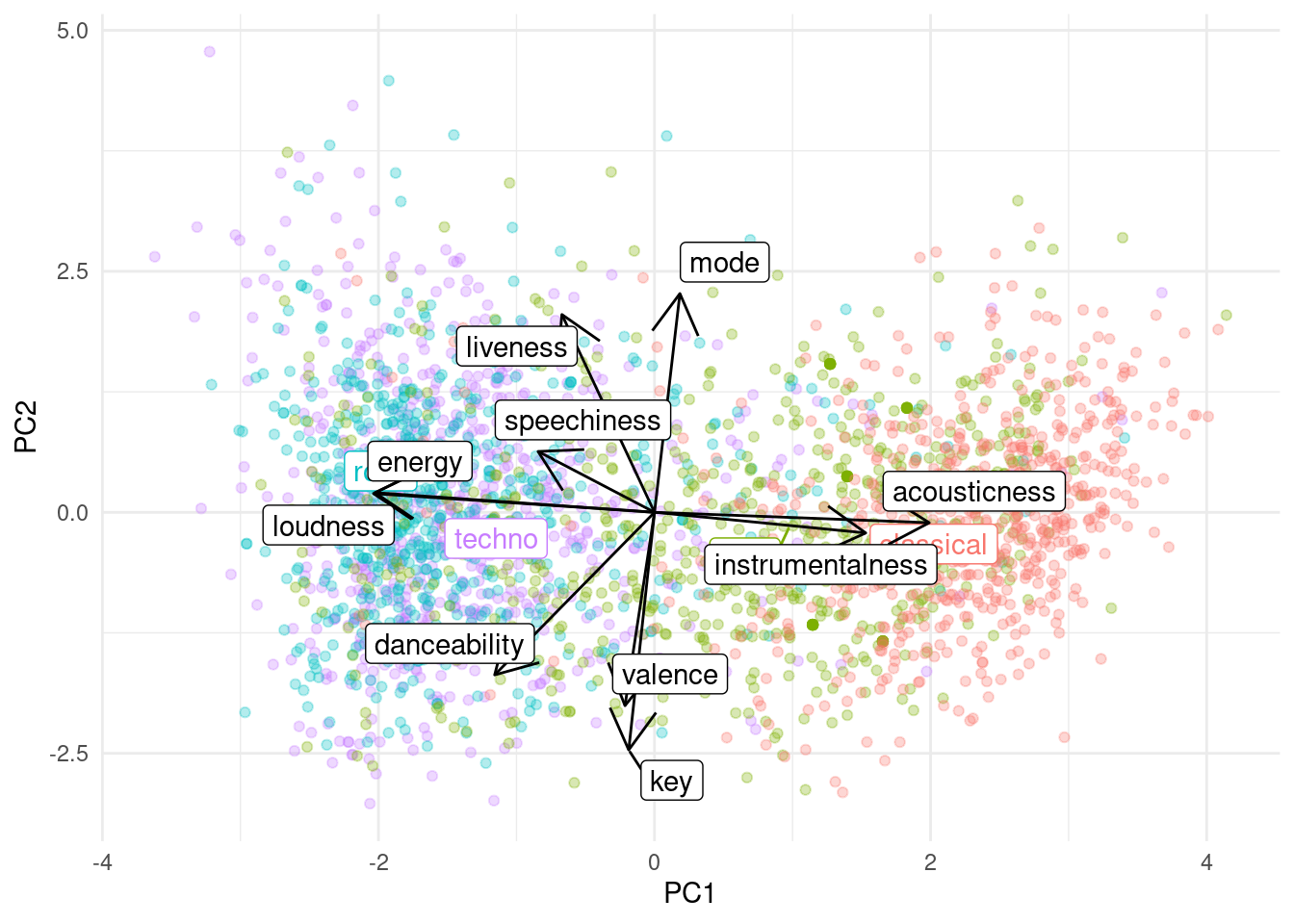

More detailed biplot:

tibble() |>
  ggplot(aes(x = PC1, y = PC2)) +
  geom_point(
    data = tracks_pca,
    mapping = aes(color = term),
    alpha = 0.3
  ) +
  ggrepel::geom_label_repel(
     data = track_clusters,
     mapping = aes(label = term, color = term)
  ) +
  guides(color = FALSE) +
  ggnewscale::new_scale_color() +
  geom_segment(
    data = pca$rotation |> as_tibble(rownames = "feature"),
    mapping = aes(x = 0, y = 0, xend = max(abs(pca$x[,1])) * PC1, yend = max(abs(pca$x[,2])) * PC2),
    arrow = arrow()
  ) +
  ggrepel::geom_label_repel(
    data = pca$rotation |> as_tibble(rownames = "feature"),
    mapping = aes(label = feature, x = max(abs(pca$x[,1])) * PC1, y = max(abs(pca$x[,2])) * PC2)
  )

Warning: `guides(<scale> = FALSE)` is deprecated. Please use `guides(<scale> =
"none")` instead.

Sanity checks:

classical track are associated with acousticness
rock and techno tracks are associated with loudness

There is no clear separation between the genre clusters suggesting a complicated classification task.

summary(pca)$importance["Cumulative Proportion","PC2"]

[1] 0.47009

Almost half of the variance can be explained by the first principal components, motivating the prediction of the terms based on the features. These features were also significantly different across the terms:

features |>
  paste0(collapse = "+") |>
  paste0("~ term") |>
  lm(data = tracks) |>
  anova()

Analysis of Variance Table

Response: danceability + acousticness
            Df Sum Sq Mean Sq F value    Pr(>F)
term         3 213.03  71.009   915.1 < 2.2e-16 ***
Residuals 3473 269.49   0.078
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

features |>
  paste0(collapse = "+") |>
  paste0("~ term") |>
  lm(data = tracks) |>
  lm() |>
  summary()


Call:
lm(formula = lm(paste0(paste0(features, collapse = "+"), "~ term"),
    data = tracks))

Residuals:
     Min       1Q   Median       3Q      Max
-1.18660 -0.17087  0.00622  0.16813  0.96074

Coefficients:
             Estimate Std. Error t value Pr(>|t|)
(Intercept)  1.362783   0.009687  140.69   <2e-16 ***
termjazz    -0.135915   0.013476  -10.09   <2e-16 ***
termrock    -0.517331   0.013525  -38.25   <2e-16 ***
termtechno  -0.588527   0.013436  -43.80   <2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.2786 on 3473 degrees of freedom
Multiple R-squared:  0.4415,    Adjusted R-squared:  0.441
F-statistic: 915.1 on 3 and 3473 DF,  p-value: < 2.2e-16

We use the same set of test samples throughout the entire analysis:

library(tidymodels)
tar_load(model_data)

train <-
  track_audio_features |>
  filter(id %in% rownames(model_data$train_y)) |>
  left_join(track_searches, by = "id") |>
  mutate(term = term |> factor()) |>
  select(term, selected_audio_features)

test <-
  track_audio_features |>
  filter(id %in% rownames(model_data$test_y)) |>
  left_join(track_searches, by = "id") |>
  mutate(term = term |> factor()) |>
  select(term, selected_audio_features)

Let’s start with a (linear) Support Vector Machine (SVM):

svm_linear(mode = "classification") |>
  fit(term ~ ., data = train) |>#
  predict(test) |>
  bind_cols(test) |>
  mutate(across(c("term", ".pred_class"), ~ factor(.x, levels = test$term |> unique()))) |>
  accuracy(truth = term, estimate = .pred_class)

# A tibble: 1 × 3
  .metric  .estimator .estimate
  <chr>    <chr>          <dbl>
1 accuracy multiclass     0.715

A (non-linear) random forest showed similar performance:

rand_forest(mode = "classification") |>
  fit(term ~ ., data = train) |>
  predict(test) |>
  bind_cols(test) |>
  mutate(across(c("term", ".pred_class"), ~ factor(.x, levels = test$term |> unique()))) |>
  accuracy(truth = term, estimate = .pred_class)

# A tibble: 1 × 3
  .metric  .estimator .estimate
  <chr>    <chr>          <dbl>
1 accuracy multiclass     0.791

The test accuracy was very high in general. Can it even be improved using the individual pitch sequences instead of relying on just a few summary features describing the entire track?

Pitch sequences for prediction

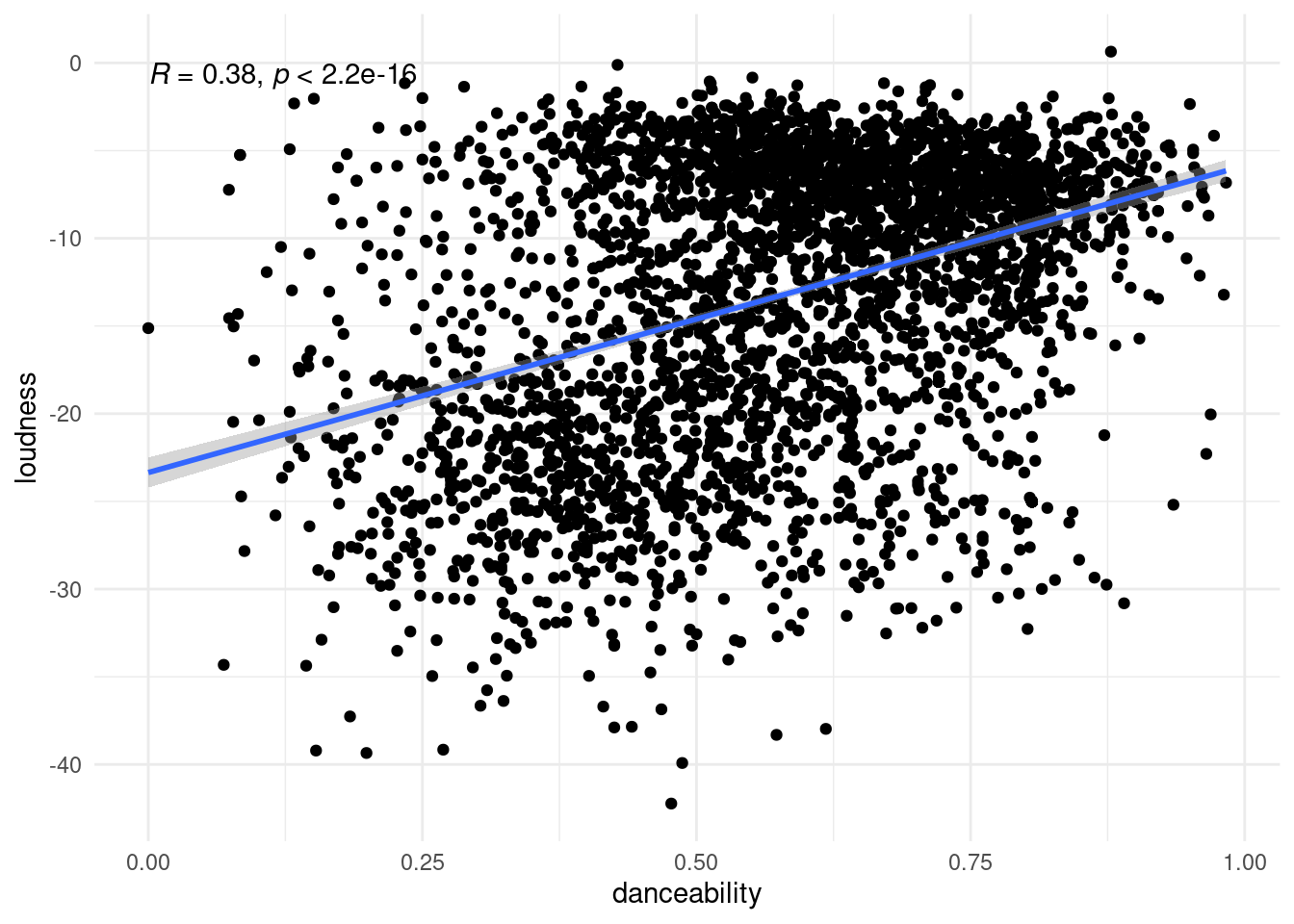

Some features are highly correlated, suggesting redundancy, e.g. :

tracks |>
  ggplot(aes(danceability, loudness)) +
    geom_point() +
    stat_smooth(method = "lm") +
    stat_cor()

`geom_smooth()` using formula 'y ~ x'

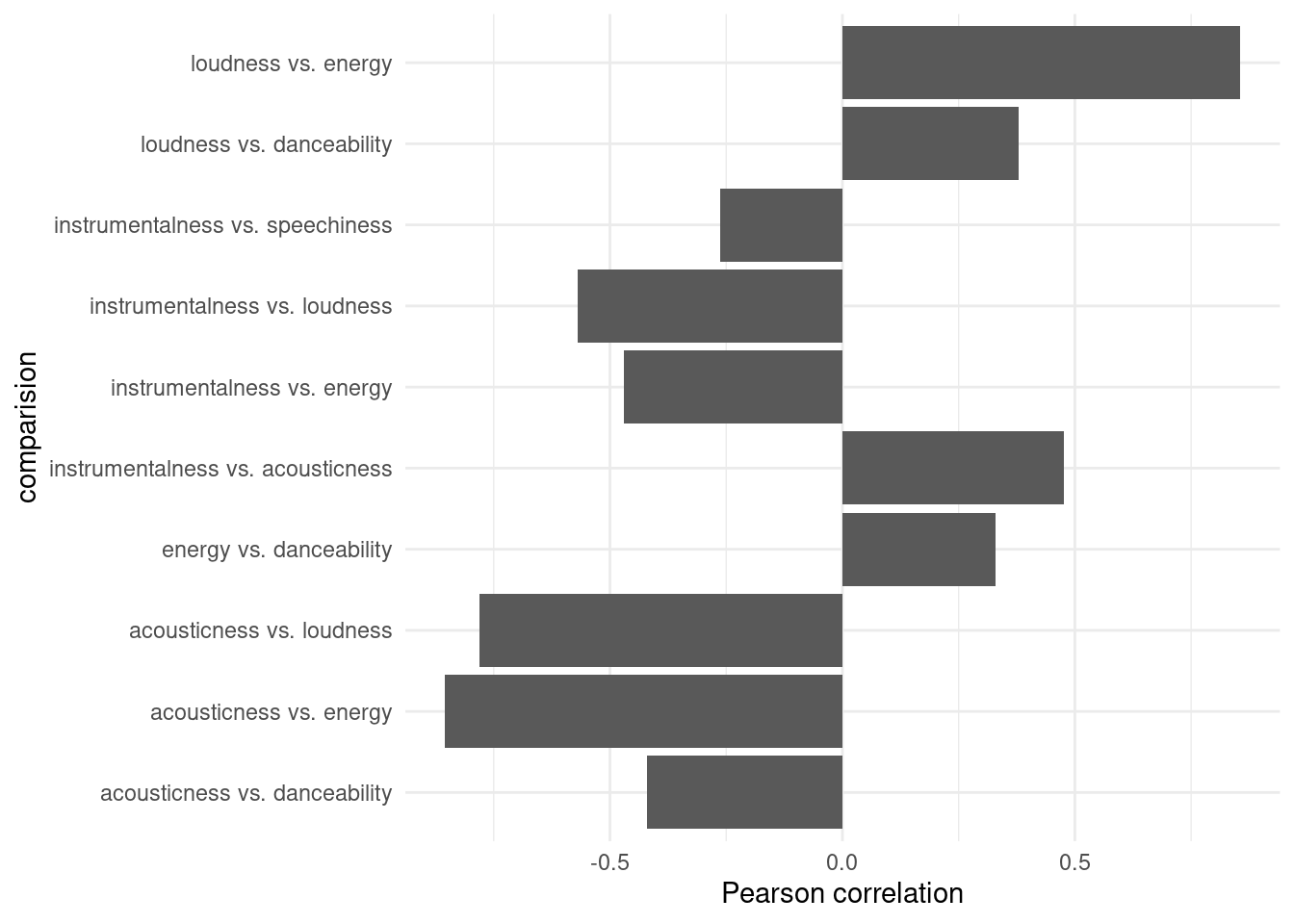

Indeed, lots of features were significantly correlated after FDR adjustment:

tracks |>
  select(selected_audio_features) |>
  as.matrix() |>
  Hmisc::rcorr() |>
  broom::tidy() |>
  ungroup() |>
  mutate(q.value = p.value |> p.adjust(method = "fdr")) |>
  filter(q.value < 0.05 & abs(estimate) > 0.2) |>
  arrange(-abs(estimate)) |>
  unite(col = comparision, column1, column2, sep = " vs. ") |>
  head(10) |>
  ggplot(aes(comparision, estimate)) +
    geom_col() +
    coord_flip() +
    labs(y = "Pearson correlation")

Music is composed of shorter and longer patterns. We can make use of the temporal property by doing convolutions on the time axis while using loudness of pitch frequencies as features.

Spotify audio analysis separates the track into many segments and calculates the loudness for each of the 12 pitches (half steps) of the scale.

track_audio_analyses$audio_analysis[[1]]$segments$pitches[1][[1]]

 [1] 0.366 0.128 0.311 0.106 0.412 1.000 0.886 0.633 0.333 0.122 0.213 0.473

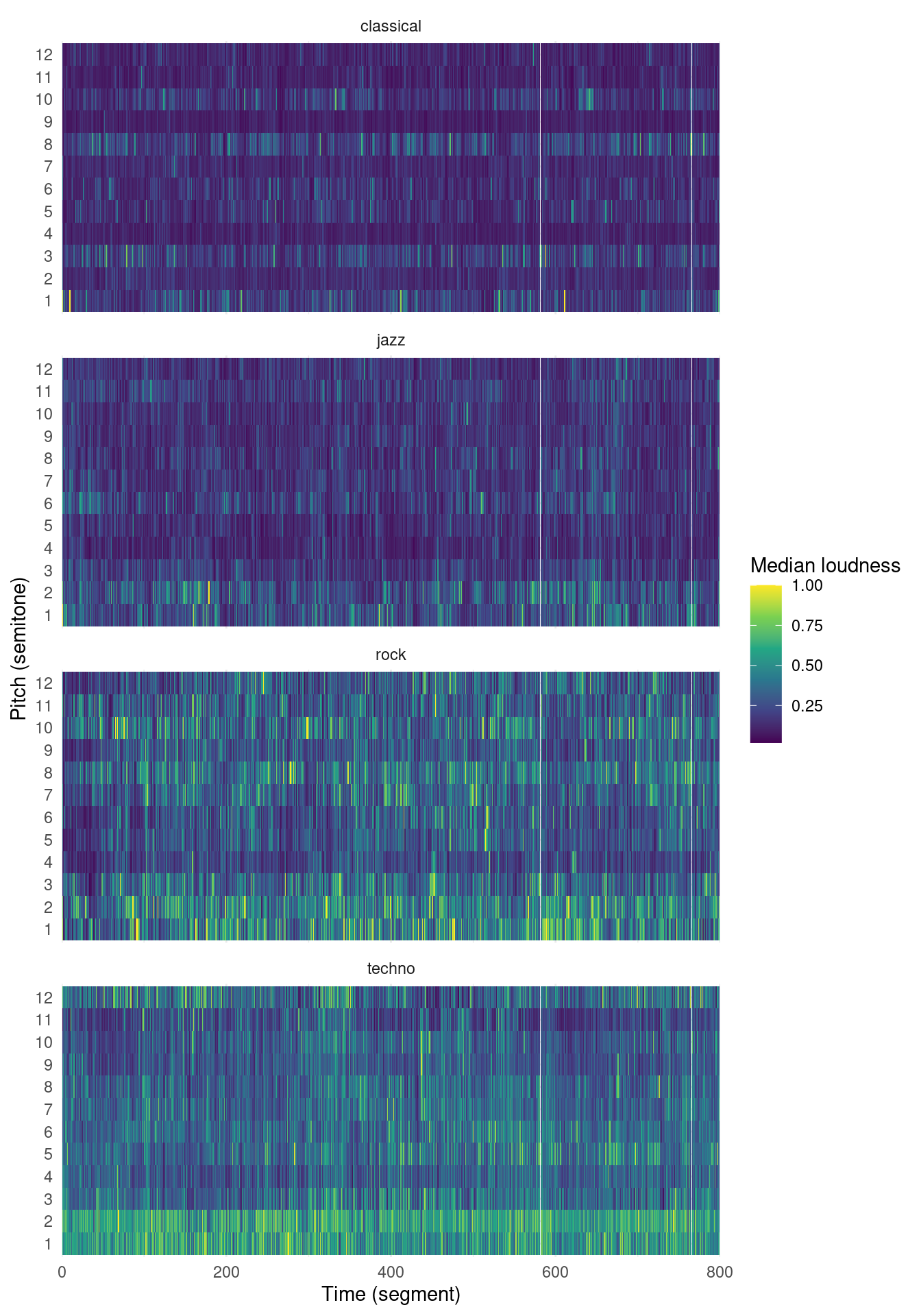

These are spectrograms of a subset of tracks representing the feature space for deep learning:

track_pitches |>
  left_join(track_searches) |>
  sample_frac(0.01) |>
  select(id, term, pitches) |>
  unnest(pitches) |>
  group_by(id) |>
  mutate(segment = row_number()) |>
  pivot_longer(starts_with("V"), names_to = "pitch_name", values_to = "pitch") |>
  mutate(pitch_name = pitch_name |> str_extract("[0-9]+") |> as.numeric() |> factor()) |>
  group_by(term, segment, pitch_name) |>
  summarise(pitch = median(pitch)) |>

  ggplot(aes(segment, pitch_name)) +
      geom_tile(aes(fill = pitch)) +
      facet_wrap(~term, ncol = 1) +
      scale_fill_viridis_c() +
      scale_x_continuous(limits = c(0, 800), expand = c(0, 0)) +
      labs(x = "Time (segment)", y = "Pitch (semitone)", fill = "Median loudness")

Joining, by = "id"
`summarise()` has grouped output by 'term', 'segment'. You can override using
the `.groups` argument.

On average, techno tracks uses a variety of different niotes across the time of the track, whereas classical tracks mostly use a few particular notes.

Let’s define some model architectures for deep learning:

tar_load(model_archs)

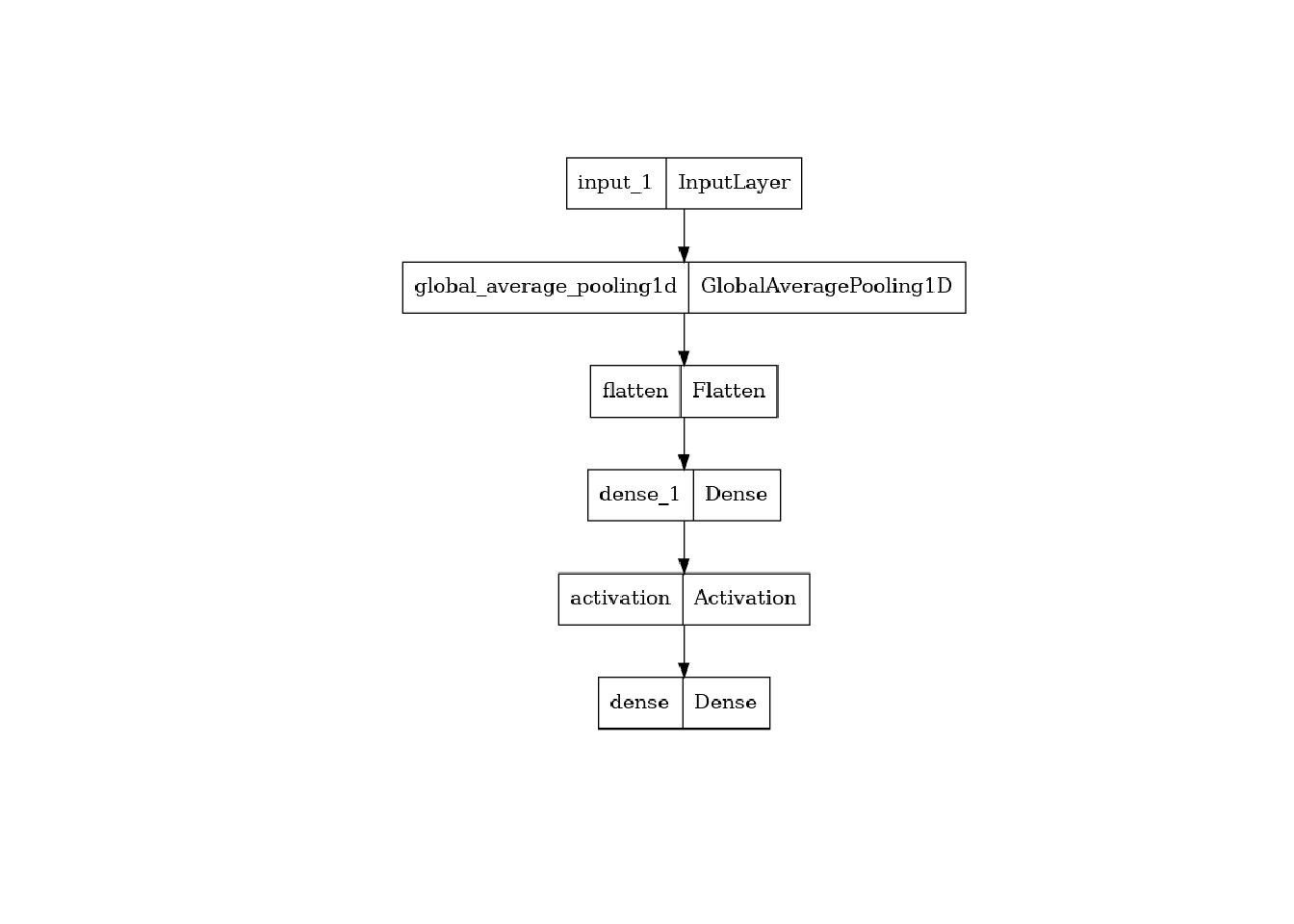

model_archs$base() |> plot()

Loaded Tensorflow version 2.9.1

This base model does not utilize the spatialness of the data and is used for comparison.

model_archs$cnn1() |> plot()

This is a sequential Convolutional Neural Network (CNN).

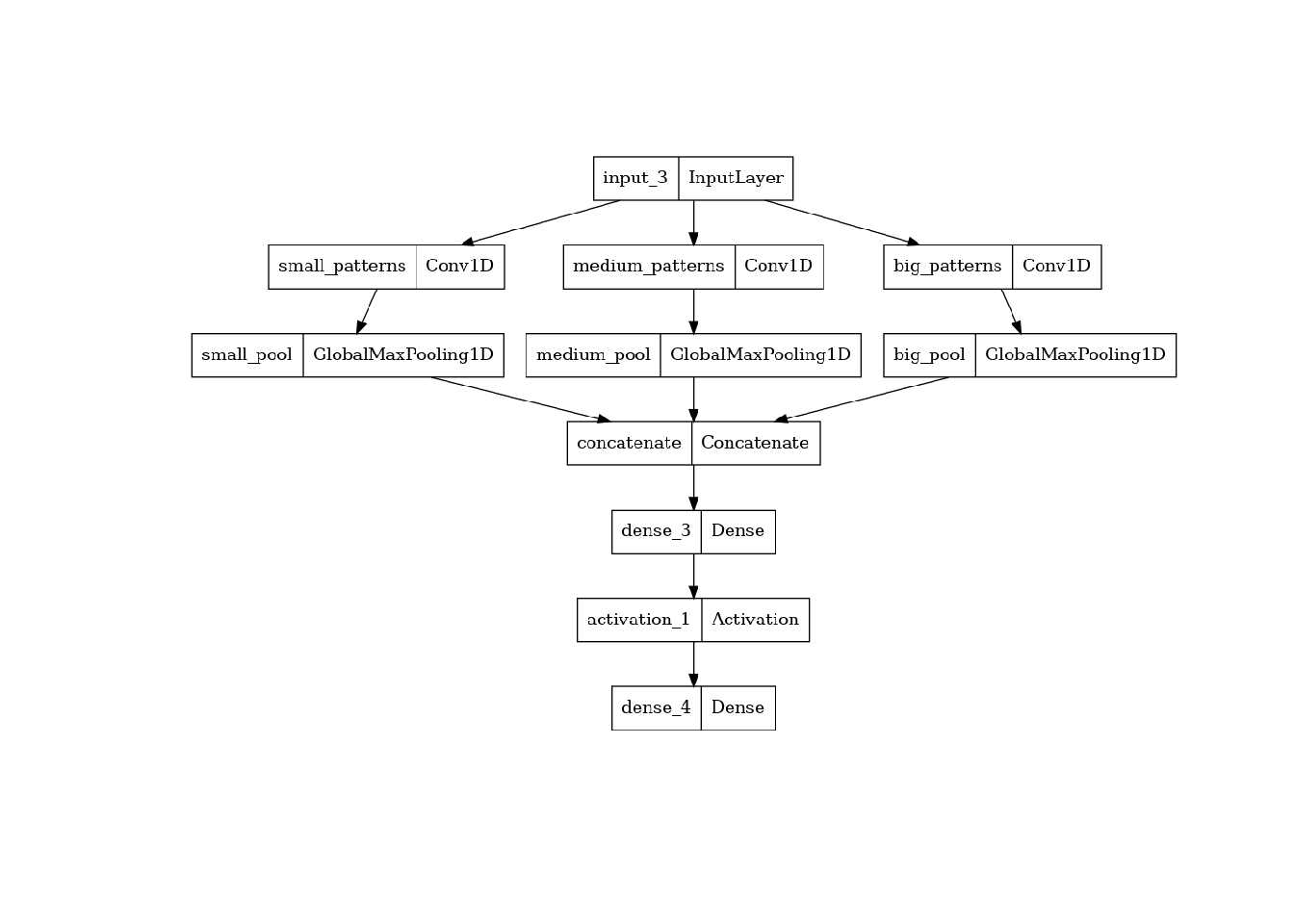

model_archs$cnn2() |> plot()

This is a non sequential Convolutional Neural Network (CNN). The idea behind this model is that both short and long pitch patterns can be directly used for final prediction.

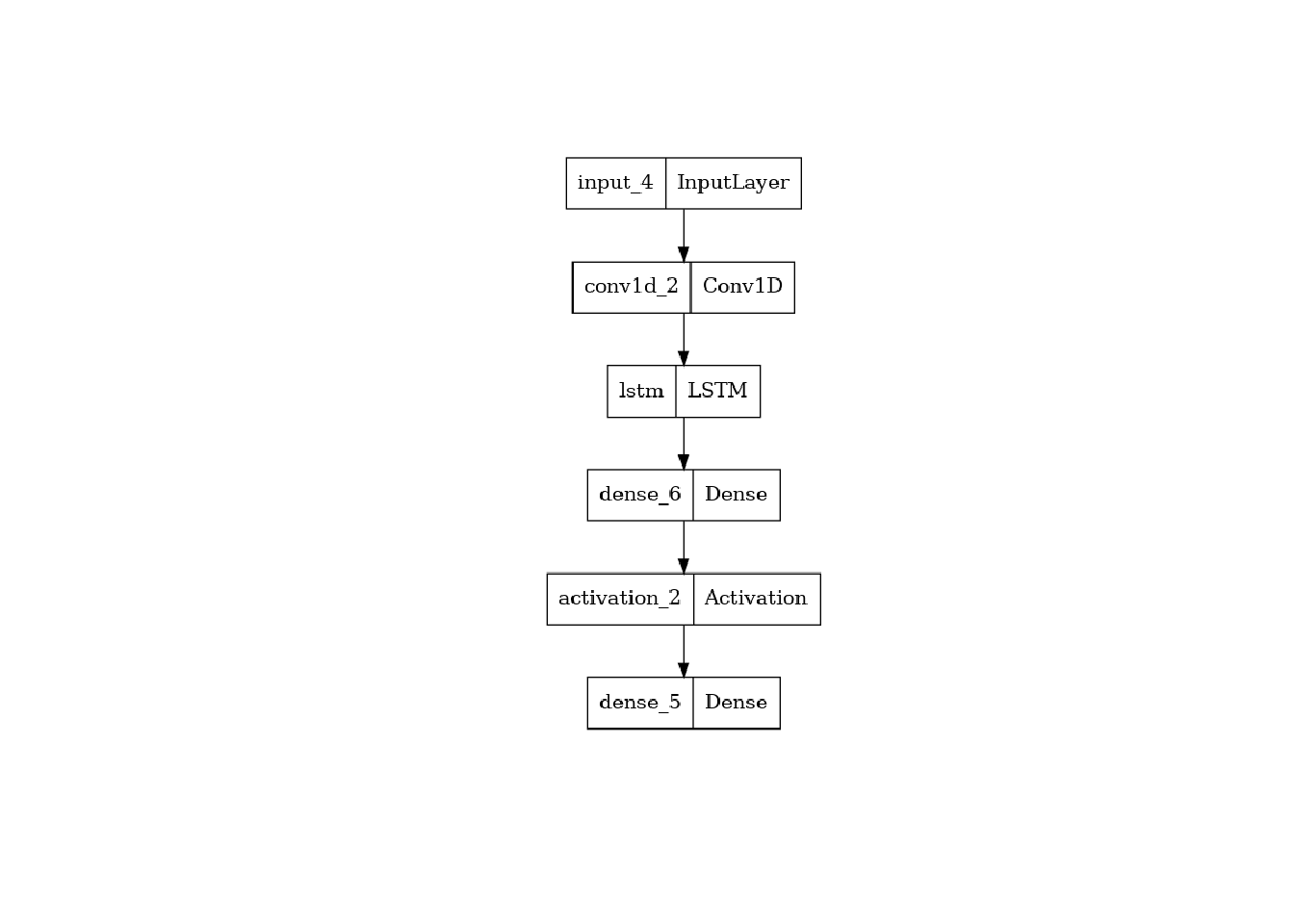

model_archs$lstm() |> plot()

Long Short-Term Memory (LSTM) networks view time as a one directional spatial feature, whereas one can go in both directions with CNNs. This makes sense for time series data, like the pitch sequences.

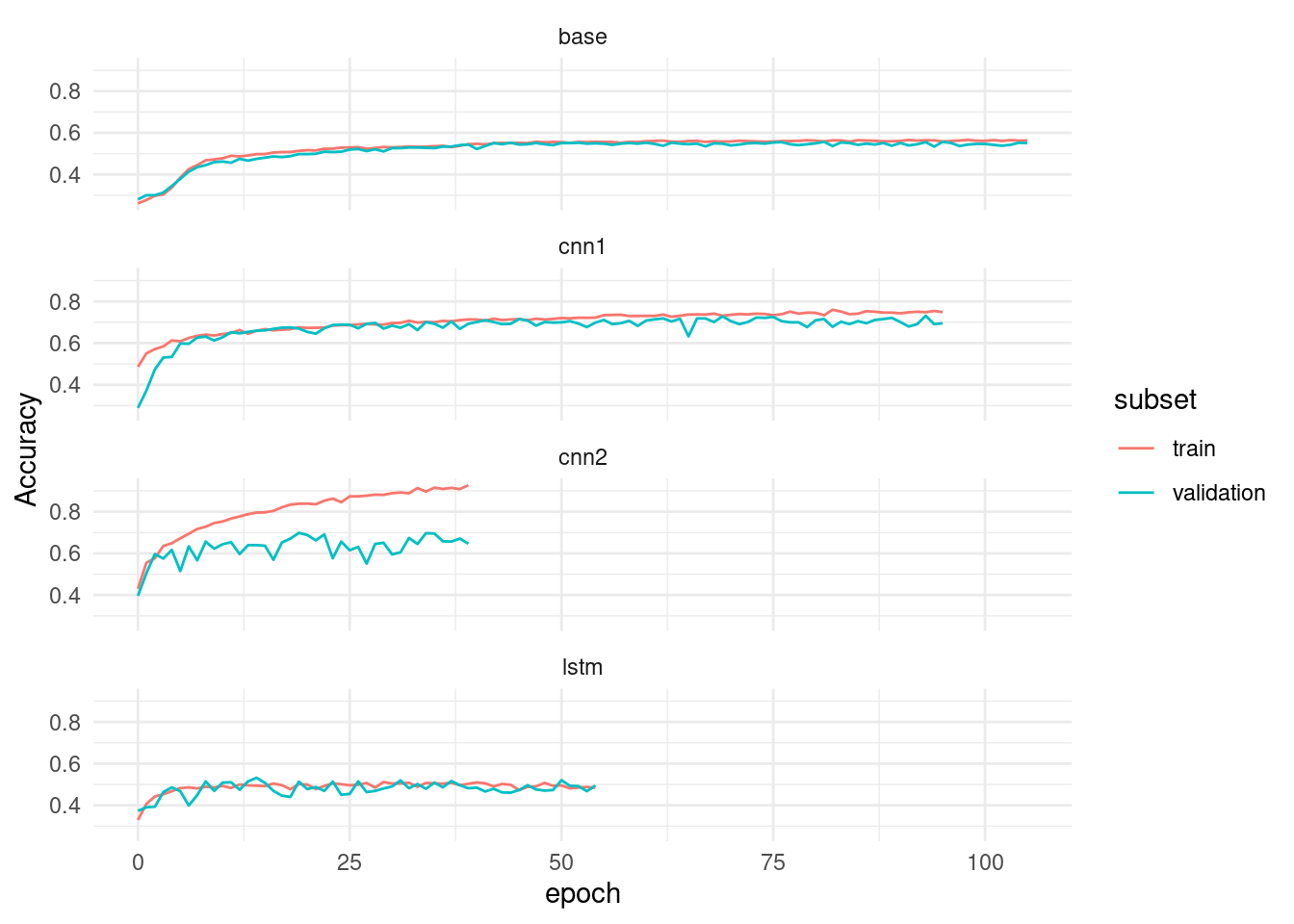

Evaluate deep learning models

tar_load(evaluations)
evaluations

# A tibble: 4 × 7
  name  model               epoch accuracy  loss val_accuracy val_loss
  <chr> <chr>               <dbl>    <dbl> <dbl>        <dbl>    <dbl>
1 cnn1  model_fits_a4330c15    93    0.748 0.636        0.731    0.725
2 cnn2  model_fits_fe0655a7    19    0.838 0.467        0.698    0.820
3 base  model_fits_90ac26ad    81    0.559 1.02         0.557    1.08
4 lstm  model_fits_1a00e901    14    0.494 1.10         0.532    1.11

All models outperformed the random guess with an expected accuracy of 25%. The simple CNN1 had the highest accuracy in the validation set.

evaluations |>
  select(name, model) |>
  mutate(history = model |> map(~ str_glue("tmp/train_history/{.x}.csv") |> read_csv())) |>
  unnest(history) |>
  pivot_longer(c("accuracy", "val_accuracy"), names_to = "subset") |>
  mutate(subset = subset |> recode(accuracy = "train", "val_accuracy" = "validation")) |>
  ggplot(aes(epoch, value, color = subset)) +
    geom_line() +
    facet_wrap(~name, ncol = 1) +
    labs(y = "Accuracy")

Rows: 96 Columns: 5
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
dbl (5): epoch, accuracy, loss, val_accuracy, val_loss

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
Rows: 40 Columns: 5
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
dbl (5): epoch, accuracy, loss, val_accuracy, val_loss

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
Rows: 106 Columns: 5
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
dbl (5): epoch, accuracy, loss, val_accuracy, val_loss

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
Rows: 55 Columns: 5
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
dbl (5): epoch, accuracy, loss, val_accuracy, val_loss

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.

The base and CNN1 model generalize well on the external validation samples, whereas CNN2 is affected by over-fitting. This is maybe due to the high number of trainable parameters.

Conclusion

CNN1 outperformed a linear SVM but its test accuracy was lower compared to a random forest. Regarding model complexity and computational effort for training, the analysis suggest that depp learning model might not be worth the efforts to predict the music genre if meaningful summary features, e.g. danceability and accousticness are available. However, using more sophisticated deep learning architectures, new deep learning models might be developed in the future to improve the validation accuracy even further.
